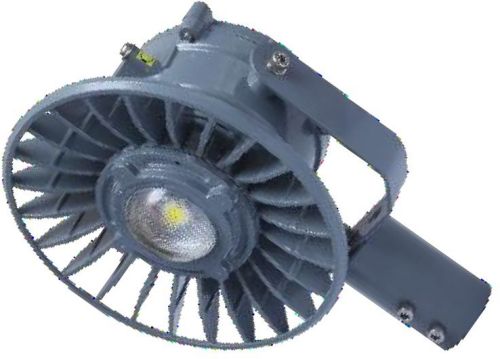

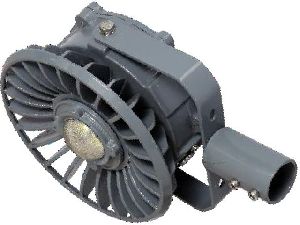

Flameproof Street Light

 Ex d IIC T5

Features:

• Fire & Ignition proof.
• Soft and comfortable light to relieve the fatigue of eyes.
• Excellent CRI for actual colour reproduction.
• Energy saving efficiency and low heat produce.
• AL die-cast housing for excellent heat management.
• 440V Protection for 2 Hrs with thermal foldback
• Quick installation, special design,
• Highly reliable professional design.

Applicable Use:

• Zone 1 & Zone 2
• Gas group IIA, IIB, IIC, Temperature class T5 & T6

Applications

• Chemical, paint, fertilizer industries,
• Oil & gas, refinery, petrochemicals,
• LPG bottling, pharmaceutical
• Steel, Cement industries, Mines

Standards Compliance

• IS/IEC  60079-1 : 2008 & 2014
• IS 15885 ( Part 2/Sec 13)
• EN 61000-3-2, Harmonics Current
• EN 61000-3-3, Voltage Fluctuations, Flicker
• EN 61000-4-5, Surge Immunity
• EN 61547, EMC
• Options
• 6500K (Other CCT on request)
• >70
• 120° x 60° Borosilicate Glass Lens
• 140-270VAC, 50Hz, PF>0.90, THD<10%, Surge DM 4Kv, CM 6Kv
• Non dimmable/1-10V/DALI
• COB, Bridgelux / Citizen, SDCM <3  Ta: -10°C to 45°C
• Lifespan >50000h @ L80 B10
